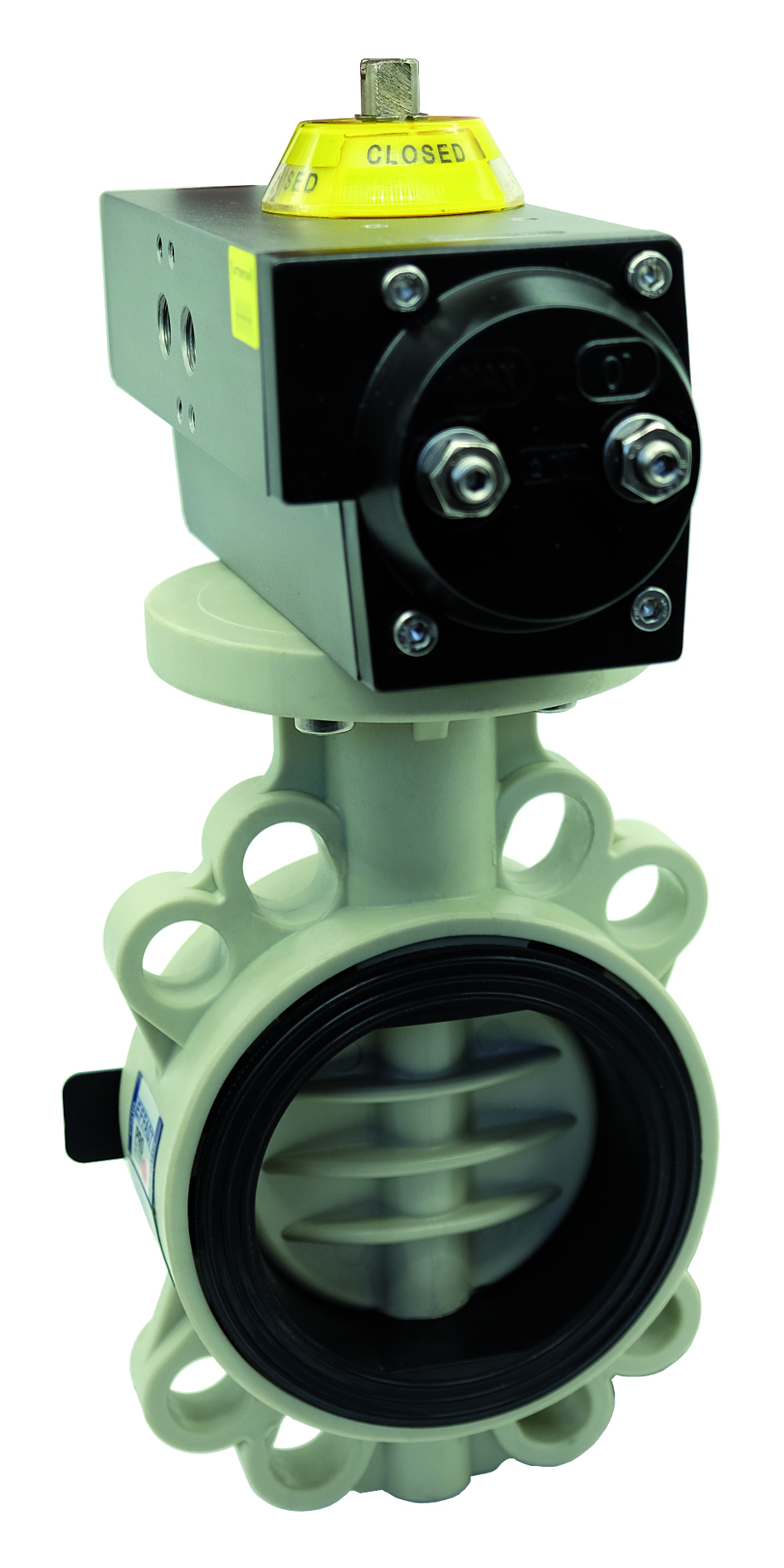

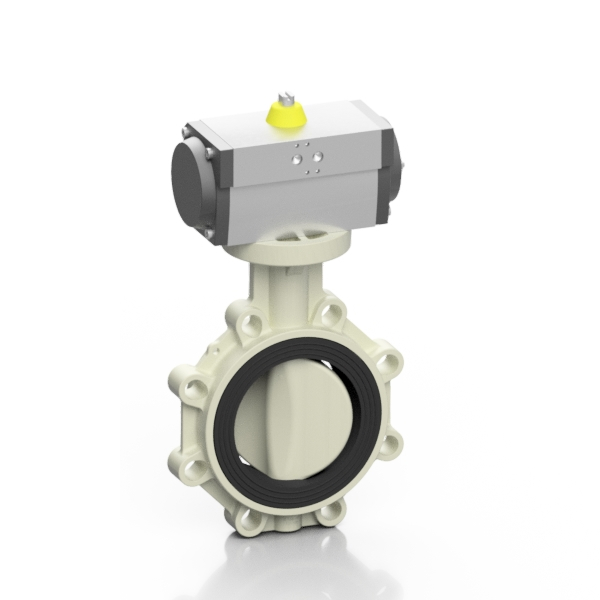

PP-H valvola a farfalla PROFLOW® T pneumatica

Semplice e doppio effetto

DESCRIZIONE

Le valvole a farfalla ad alte prestazioni sono usate per la chiusura o la regolazione del flusso. A rendere la valvola a farfalla PROFLOW ideale per applicazioni ad alte prestazioni sono: le maggiori portate e le minori perdite di carico nella valvola, il controllo preciso, la guarnizione integrale e la facilità di azionamento.

La valvola a farfalla PROFLOW può essere azionata con attuatori elettrici o pneumatici standard e può essere dotata di riduttori a volantino senza la necessità di kit aggiuntivi.

Lo standard di accoppiamento è in accordo con la ISO 5211.

Caratteristiche tecniche:

  • Disco disponibile in diversi materiali idonei a diverse applicazioni
  • Il corpo caricato in fibra di vetro è lavorato per garantire una tenuta sicura
  • Guarnizione principale in EPDM, FKM o EPDM certificato NSF.
  • Asta in acciaio AISI 420B o AISI 316
  • Maniglia con blocco rapido
  • Regolazione fine della portata, con 19 posizioni tra 0° e 90°
  • Adatta per l’installazione sia con flange EN/ISO/ DIN, ANSI che JIS
  • Pressione nominale: PN 10bar – 145 psi
  • Adatta per il contatto con acqua potabile
  • Conforme ai requisiti dell’Allegato III, Modulo A2 della Direttiva Europea sui sistemi in pressione 2014/68/EU.
PRODUCT CODES: FHPPPFT075S.CR FHPPPFT090S.CR FHPPPFT110S.CR FHPPPFT140S.CR FHPPPFT160S.CR FHPPPFT225S.CR FHPPPFT075SV.CR FHPPPFT090SV.CR FHPPPFT110SV.CR FHPPPFT140SV.CR FHPPPFT160SV.CR FHPPPFT225SV.CR FHPPPFT075S FHPPPFT090S FHPPPFT110S FHPPPFT140S FHPPPFT160S FHPPPFT225S FHPPPFT075SV FHPPPFT090SV FHPPPFT110SV FHPPPFT140SV FHPPPFT160SV FHPPPFT225SV FHPPPFTF075S.CR FHPPPFTF090S.CR FHPPPFTF110S.CR FHPPPFTF125S.CR FHPPPFTF140S.CR FHPPPFTF160S.CR FHPPPFTF200S.CR FHPPPFTF225S.CR FHPPPFTF075SV.CR FHPPPFTF090SV.CR FHPPPFTF110SV.CR FHPPPFTF125SV.CR FHPPPFTF140SV.CR FHPPPFTF160SV.CR FHPPPFTF200SV.CR FHPPPFTF225SV.CR FHPPPFTF075S FHPPPFTF090S FHPPPFTF110S FHPPPFTF125S FHPPPFTF140S FHPPPFTF160S FHPPPFTF200S FHPPPFTF225S FHPPPFTF075SV FHPPPFTF090SV FHPPPFTF110SV FHPPPFTF125SV FHPPPFTF140SV FHPPPFTF160SV FHPPPFTF200SV FHPPPFTF225SV FHPPPFT075D.CR FHPPPFT090D.CR FHPPPFT110D.CR FHPPPFT140D.CR FHPPPFT160D.CR FHPPPFT225D.CR FHPPPFT075DV.CR FHPPPFT090DV.CR FHPPPFT110DV.CR FHPPPFT140DV.CR FHPPPFT160DV.CR FHPPPFT225DV.CR FHPPPFT075D FHPPPFT090D FHPPPFT110D FHPPPFT140D FHPPPFT160D FHPPPFT225D FHPPPFT075DV FHPPPFT090DV FHPPPFT110DV FHPPPFT140DV FHPPPFT160DV FHPPPFT225DV FHPPPFTF075D.CR FHPPPFTF090D.CR FHPPPFTF110D.CR FHPPPFTF125D.CR FHPPPFTF140D.CR FHPPPFTF160D.CR FHPPPFTF200D.CR FHPPPFTF225D.CR FHPPPFTF075DV.CR FHPPPFTF090DV.CR FHPPPFTF110DV.CR FHPPPFTF125DV.CR FHPPPFTF140DV.CR FHPPPFTF160DV.CR FHPPPFTF200DV.CR FHPPPFTF225DV.CR FHPPPFTF075D FHPPPFTF090D FHPPPFTF110D FHPPPFTF125D FHPPPFTF140D FHPPPFTF160D FHPPPFTF200D FHPPPFTF225D FHPPPFTF075DV FHPPPFTF090DV FHPPPFTF110DV FHPPPFTF125DV FHPPPFTF140DV FHPPPFTF160DV FHPPPFTF200DV FHPPPFTF225DV FHPPPFT FHPPPFTF PPFT PPFTF
Applicazioni:
PP-H valvola a farfalla PROFLOW® T pneumatica - EFFAST - 100% Made in Italy
PP-H valvola a farfalla PROFLOW® T pneumatica- EFFAST - 100% Made in Italy

Documenti

Datasheet PP-H Valvola a Farfalla PROFLOW® T
Dimensionale PP-H Valvola a Farfalla PROFLOW® T Pneumatica Semplice Effetto, Asta AISI 420B
Dimensionale PP-H Valvola a Farfalla PROFLOW® T Pneumatica Semplice Effetto, Asta AISI 316
Dimensionale PP-H Valvola a Farfalla PROFLOW® T Pneumatica Doppio Effetto, Asta AISI 420B
Dimensionale PP-H Valvola a Farfalla PROFLOW® T Pneumatica Doppio Effetto, Asta AISI 316

Manuale di Istruzioni Valvola a Farfalla

PRODUCT CODES: FHPPPFT075S.CR FHPPPFT090S.CR FHPPPFT110S.CR FHPPPFT140S.CR FHPPPFT160S.CR FHPPPFT225S.CR FHPPPFT075SV.CR FHPPPFT090SV.CR FHPPPFT110SV.CR FHPPPFT140SV.CR FHPPPFT160SV.CR FHPPPFT225SV.CR FHPPPFT075S FHPPPFT090S FHPPPFT110S FHPPPFT140S FHPPPFT160S FHPPPFT225S FHPPPFT075SV FHPPPFT090SV FHPPPFT110SV FHPPPFT140SV FHPPPFT160SV FHPPPFT225SV FHPPPFTF075S.CR FHPPPFTF090S.CR FHPPPFTF110S.CR FHPPPFTF125S.CR FHPPPFTF140S.CR FHPPPFTF160S.CR FHPPPFTF200S.CR FHPPPFTF225S.CR FHPPPFTF075SV.CR FHPPPFTF090SV.CR FHPPPFTF110SV.CR FHPPPFTF125SV.CR FHPPPFTF140SV.CR FHPPPFTF160SV.CR FHPPPFTF200SV.CR FHPPPFTF225SV.CR FHPPPFTF075S FHPPPFTF090S FHPPPFTF110S FHPPPFTF125S FHPPPFTF140S FHPPPFTF160S FHPPPFTF200S FHPPPFTF225S FHPPPFTF075SV FHPPPFTF090SV FHPPPFTF110SV FHPPPFTF125SV FHPPPFTF140SV FHPPPFTF160SV FHPPPFTF200SV FHPPPFTF225SV FHPPPFT075D.CR FHPPPFT090D.CR FHPPPFT110D.CR FHPPPFT140D.CR FHPPPFT160D.CR FHPPPFT225D.CR FHPPPFT075DV.CR FHPPPFT090DV.CR FHPPPFT110DV.CR FHPPPFT140DV.CR FHPPPFT160DV.CR FHPPPFT225DV.CR FHPPPFT075D FHPPPFT090D FHPPPFT110D FHPPPFT140D FHPPPFT160D FHPPPFT225D FHPPPFT075DV FHPPPFT090DV FHPPPFT110DV FHPPPFT140DV FHPPPFT160DV FHPPPFT225DV FHPPPFTF075D.CR FHPPPFTF090D.CR FHPPPFTF110D.CR FHPPPFTF125D.CR FHPPPFTF140D.CR FHPPPFTF160D.CR FHPPPFTF200D.CR FHPPPFTF225D.CR FHPPPFTF075DV.CR FHPPPFTF090DV.CR FHPPPFTF110DV.CR FHPPPFTF125DV.CR FHPPPFTF140DV.CR FHPPPFTF160DV.CR FHPPPFTF200DV.CR FHPPPFTF225DV.CR FHPPPFTF075D FHPPPFTF090D FHPPPFTF110D FHPPPFTF125D FHPPPFTF140D FHPPPFTF160D FHPPPFTF200D FHPPPFTF225D FHPPPFTF075DV FHPPPFTF090DV FHPPPFTF110DV FHPPPFTF125DV FHPPPFTF140DV FHPPPFTF160DV FHPPPFTF200DV FHPPPFTF225DV FHPPPFT FHPPPFTF PPFT PPFTF
Applicazioni:

Modello 3D

PRODUCT CODES: FHPPPFT075S.CR FHPPPFT090S.CR FHPPPFT110S.CR FHPPPFT140S.CR FHPPPFT160S.CR FHPPPFT225S.CR FHPPPFT075SV.CR FHPPPFT090SV.CR FHPPPFT110SV.CR FHPPPFT140SV.CR FHPPPFT160SV.CR FHPPPFT225SV.CR FHPPPFT075S FHPPPFT090S FHPPPFT110S FHPPPFT140S FHPPPFT160S FHPPPFT225S FHPPPFT075SV FHPPPFT090SV FHPPPFT110SV FHPPPFT140SV FHPPPFT160SV FHPPPFT225SV FHPPPFTF075S.CR FHPPPFTF090S.CR FHPPPFTF110S.CR FHPPPFTF125S.CR FHPPPFTF140S.CR FHPPPFTF160S.CR FHPPPFTF200S.CR FHPPPFTF225S.CR FHPPPFTF075SV.CR FHPPPFTF090SV.CR FHPPPFTF110SV.CR FHPPPFTF125SV.CR FHPPPFTF140SV.CR FHPPPFTF160SV.CR FHPPPFTF200SV.CR FHPPPFTF225SV.CR FHPPPFTF075S FHPPPFTF090S FHPPPFTF110S FHPPPFTF125S FHPPPFTF140S FHPPPFTF160S FHPPPFTF200S FHPPPFTF225S FHPPPFTF075SV FHPPPFTF090SV FHPPPFTF110SV FHPPPFTF125SV FHPPPFTF140SV FHPPPFTF160SV FHPPPFTF200SV FHPPPFTF225SV FHPPPFT075D.CR FHPPPFT090D.CR FHPPPFT110D.CR FHPPPFT140D.CR FHPPPFT160D.CR FHPPPFT225D.CR FHPPPFT075DV.CR FHPPPFT090DV.CR FHPPPFT110DV.CR FHPPPFT140DV.CR FHPPPFT160DV.CR FHPPPFT225DV.CR FHPPPFT075D FHPPPFT090D FHPPPFT110D FHPPPFT140D FHPPPFT160D FHPPPFT225D FHPPPFT075DV FHPPPFT090DV FHPPPFT110DV FHPPPFT140DV FHPPPFT160DV FHPPPFT225DV FHPPPFTF075D.CR FHPPPFTF090D.CR FHPPPFTF110D.CR FHPPPFTF125D.CR FHPPPFTF140D.CR FHPPPFTF160D.CR FHPPPFTF200D.CR FHPPPFTF225D.CR FHPPPFTF075DV.CR FHPPPFTF090DV.CR FHPPPFTF110DV.CR FHPPPFTF125DV.CR FHPPPFTF140DV.CR FHPPPFTF160DV.CR FHPPPFTF200DV.CR FHPPPFTF225DV.CR FHPPPFTF075D FHPPPFTF090D FHPPPFTF110D FHPPPFTF125D FHPPPFTF140D FHPPPFTF160D FHPPPFTF200D FHPPPFTF225D FHPPPFTF075DV FHPPPFTF090DV FHPPPFTF110DV FHPPPFTF125DV FHPPPFTF140DV FHPPPFTF160DV FHPPPFTF200DV FHPPPFTF225DV FHPPPFT FHPPPFTF PPFT PPFTF
Applicazioni:

BIM

BIM PP-H Valvola a Farfalla PROFLOW® T Pneumatica Semplice Effetto, Asta AISI 420B
BIM PP-H Valvola a Farfalla PROFLOW® T Pneumatica Semplice Effetto, Asta AISI 316
BIM PP-H Valvola a Farfalla PROFLOW® T Pneumatica Doppio Effetto, Asta AISI 420B
BIM PP-H Valvola a Farfalla PROFLOW® T Pneumatica Doppio Effetto, Asta AISI 316

PRODUCT CODES: FHPPPFT075S.CR FHPPPFT090S.CR FHPPPFT110S.CR FHPPPFT140S.CR FHPPPFT160S.CR FHPPPFT225S.CR FHPPPFT075SV.CR FHPPPFT090SV.CR FHPPPFT110SV.CR FHPPPFT140SV.CR FHPPPFT160SV.CR FHPPPFT225SV.CR FHPPPFT075S FHPPPFT090S FHPPPFT110S FHPPPFT140S FHPPPFT160S FHPPPFT225S FHPPPFT075SV FHPPPFT090SV FHPPPFT110SV FHPPPFT140SV FHPPPFT160SV FHPPPFT225SV FHPPPFTF075S.CR FHPPPFTF090S.CR FHPPPFTF110S.CR FHPPPFTF125S.CR FHPPPFTF140S.CR FHPPPFTF160S.CR FHPPPFTF200S.CR FHPPPFTF225S.CR FHPPPFTF075SV.CR FHPPPFTF090SV.CR FHPPPFTF110SV.CR FHPPPFTF125SV.CR FHPPPFTF140SV.CR FHPPPFTF160SV.CR FHPPPFTF200SV.CR FHPPPFTF225SV.CR FHPPPFTF075S FHPPPFTF090S FHPPPFTF110S FHPPPFTF125S FHPPPFTF140S FHPPPFTF160S FHPPPFTF200S FHPPPFTF225S FHPPPFTF075SV FHPPPFTF090SV FHPPPFTF110SV FHPPPFTF125SV FHPPPFTF140SV FHPPPFTF160SV FHPPPFTF200SV FHPPPFTF225SV FHPPPFT075D.CR FHPPPFT090D.CR FHPPPFT110D.CR FHPPPFT140D.CR FHPPPFT160D.CR FHPPPFT225D.CR FHPPPFT075DV.CR FHPPPFT090DV.CR FHPPPFT110DV.CR FHPPPFT140DV.CR FHPPPFT160DV.CR FHPPPFT225DV.CR FHPPPFT075D FHPPPFT090D FHPPPFT110D FHPPPFT140D FHPPPFT160D FHPPPFT225D FHPPPFT075DV FHPPPFT090DV FHPPPFT110DV FHPPPFT140DV FHPPPFT160DV FHPPPFT225DV FHPPPFTF075D.CR FHPPPFTF090D.CR FHPPPFTF110D.CR FHPPPFTF125D.CR FHPPPFTF140D.CR FHPPPFTF160D.CR FHPPPFTF200D.CR FHPPPFTF225D.CR FHPPPFTF075DV.CR FHPPPFTF090DV.CR FHPPPFTF110DV.CR FHPPPFTF125DV.CR FHPPPFTF140DV.CR FHPPPFTF160DV.CR FHPPPFTF200DV.CR FHPPPFTF225DV.CR FHPPPFTF075D FHPPPFTF090D FHPPPFTF110D FHPPPFTF125D FHPPPFTF140D FHPPPFTF160D FHPPPFTF200D FHPPPFTF225D FHPPPFTF075DV FHPPPFTF090DV FHPPPFTF110DV FHPPPFTF125DV FHPPPFTF140DV FHPPPFTF160DV FHPPPFTF200DV FHPPPFTF225DV FHPPPFT FHPPPFTF PPFT PPFTF
Applicazioni:
