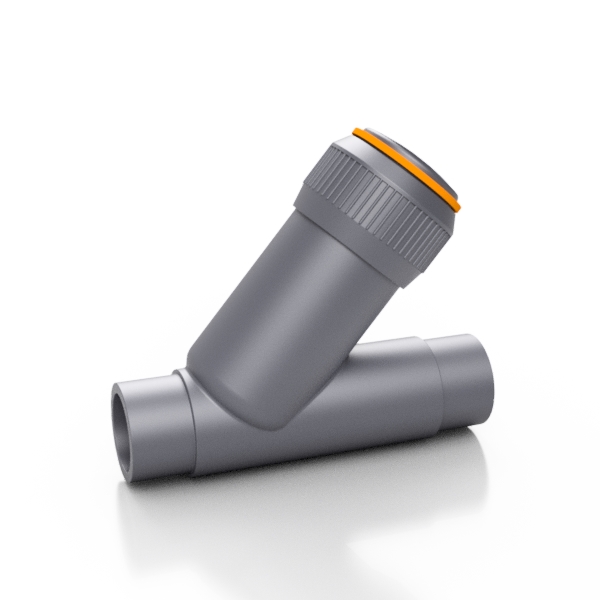

PVC-U angle seat piston check valve

DESCRIPTION

The VIT is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only.

Technical features:

  • Connection system for solvent weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
PRODUCT CODES: CDRVIV0200 CDRVIV0250 CDRVIV0320 CDRVIV0400 CDRVIV0500 CDRVIV0630 CDRVIV VIV
Applications:

Documents

Datasheet PVC-U Shut-Off Valve
Dimensional PVC-U Shut-Off Valve, Solvent Welded Metric

PRODUCT CODES: CDRVIV0200 CDRVIV0250 CDRVIV0320 CDRVIV0400 CDRVIV0500 CDRVIV0630 CDRVIV VIV
Applications:

3D model

PRODUCT CODES: CDRVIV0200 CDRVIV0250 CDRVIV0320 CDRVIV0400 CDRVIV0500 CDRVIV0630 CDRVIV VIV
