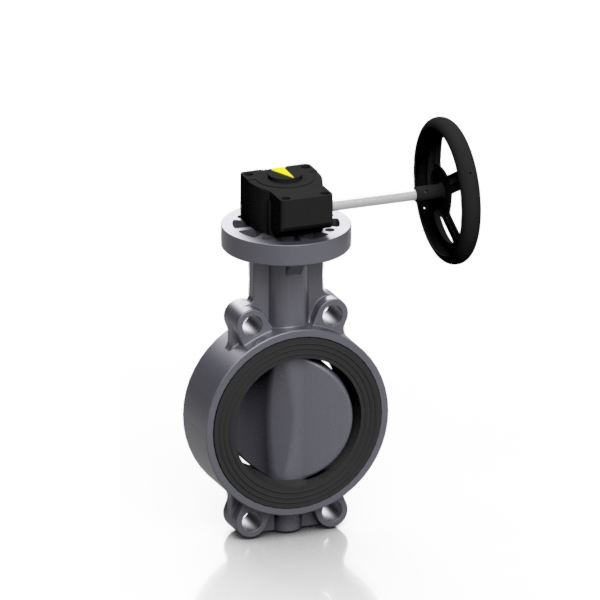

PVC-U PROFLOW® H butterfly valve

Manual with gearbox

DESCRIPTION

High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the PROFLOW H butterfly valve is ideal for high performance applications.

Technical features:

  • Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs.
  • The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
  • PVC-U body is machined to guarantee a secure seal.
  • EPDM certifed main gasket.
  • Zinc plated carbon steel stem
  • Regulating plate with 19 positions between 0° and 90°, for fine readjustment of the flow rate.
  • Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
  • Fit for contact with potable water
  • Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU.
