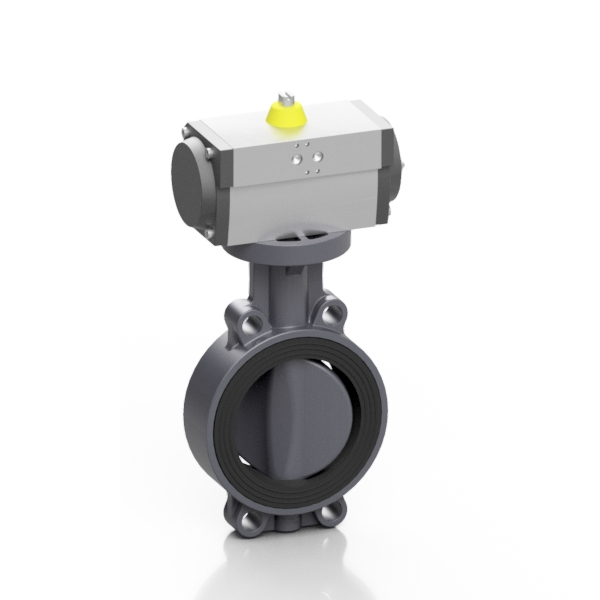

PVC-U pneumatic PROFLOW® H butterfly valve

Spring return and double acting

DESCRIPTION

High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the PROFLOW H butterfly valve is ideal for high performance applications.

PROFLOW butterfly valve can be actuated with standard electric or pneumatic actuators and can be equipped with wheel gearboxes without additional kit.

The mounting flange is drilled according to standard ISO 5211.

Technical features:

  • Patented High Flow offset disc with a unique design to allow for a greater flow rate and lower pressure drop in comparison to traditional discs
  • The High Flow offset disc allows a linear response resulting in greater control and excellent flow regulation
  • PVC-U body is machined to guarantee a secure seal
  • EPDM certifed main gasket
  • Zinc plated carbon steel stem
  • Lockable handle.
  • Regulating plate with 19 positions between 0° and 90°, for fne readjustment of the flow rate
  • Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
  • Fit for contact with potable water
  • Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU.
