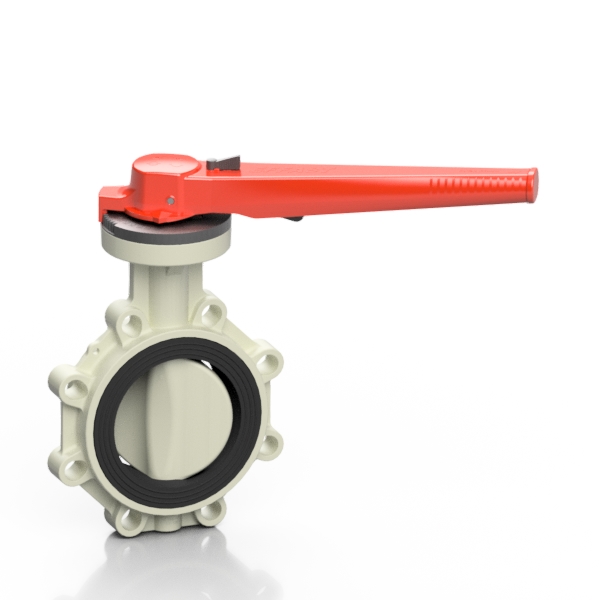

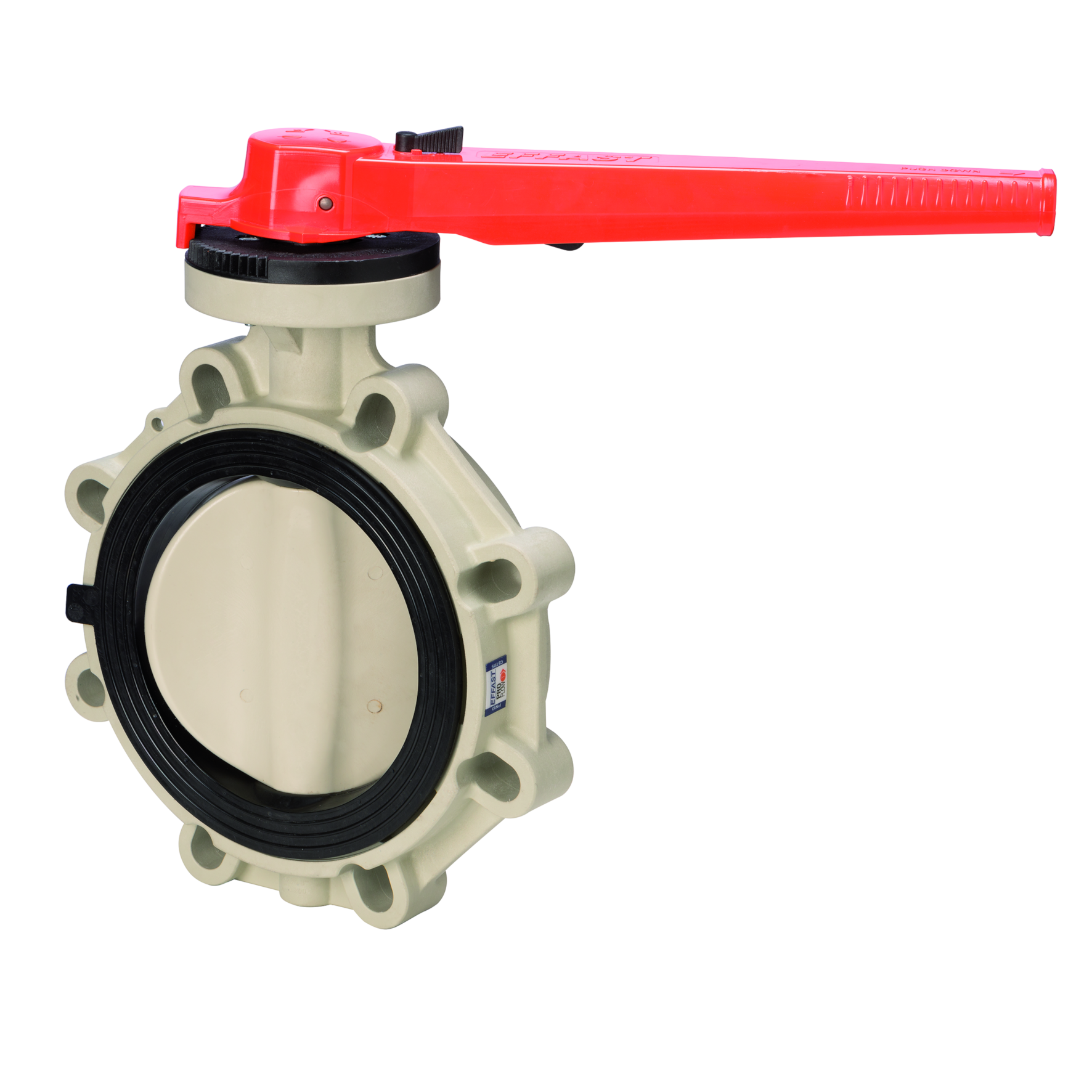

PP-H PROFLOW® T butterfly valve



High performance butterfly valve for closing or flow regulating applications. Greater flow rates and reduced pressure drop across the valve, along with fine control, integral seal and ease of actuation means the PROFLOW H butterfly valve is ideal for high performance applications.

Technical features:

  • Disc available in different material, to be suitable for different applications
  • Glass fber reinforced PP-H body machined to guarantee a secure seal.
  • EPDM, FKM or EPDM NSF certified main gasket.
  • Stem in Stainless Steel AISI 420 B or AISI 316
  • Lockable handle.
  • Regulating plate with 19 positions between 0° and 90°, for fine readjustment of the flow rate.
  • Suitable for installation between EN/ISO/DIN, ANSI and JIS flanges
  • Nominal pressure: PN 10bar – 145 psi
  • Fit for contact with potable water
  • Compliant with the requirements of Annex III, Module A2 of the Pressure Equipment Directive 2014/68/EU.
